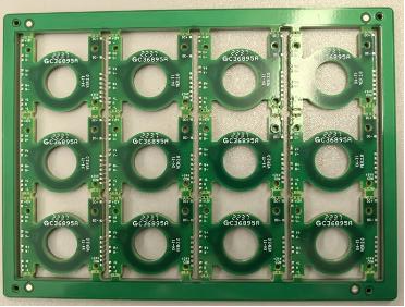

Planar Transformer PCB

Product Introduction
Planar transformer circuit board is a new type of high-frequency ferrite inductor component, suitable for flat mounting, which can realize the lightness, thinness and compactness of electronic products. Its core features include high frequency, low profile, small height and high operating frequency. Planar transformer adopts multi-layer printed circuit board ( PCB ) winding design, achieve electromagnetic conversion through spiral coils on multi-layer PCB board, has low DC copper resistance, low leakage inductance and distributed capacitance, and can meet the design requirements of high-frequency circuits.

Company Process

At present, our company has the ability to produce small and large batches for 6-16 layer PCB .

Application

Household appliances, industrial production, communication systems , high-power lighting, computers, electronic products, fast charging, etc.
