Brand : Chanyee
Product origin : Jiaxing, China
Delivery time : 7-28days

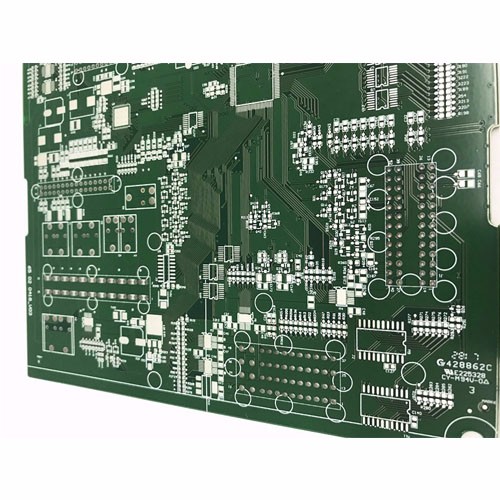

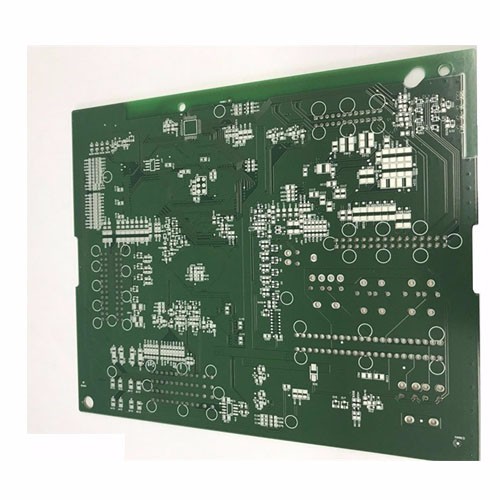

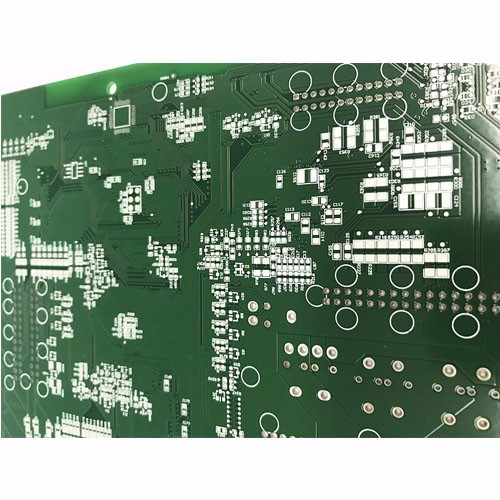

1.2 Layers Immersion Tin PCB
2.Base Material: FR4
3.Panel Size(mm):175*145
4.Board Thickness(MM): 1.6
5.Copper Thickness(OZ): 2/1/1/2
6.Min. Hole Size: 0.40 mm
7.Solder Mask: Green （White, Black, Blue, Yellow,Red, Matte Green, Matte Blue can be chosen）
8.Silkscreen: White （Black, Yellow can be chosen）
9.Outline: CNC+V
10.Surface Finishing: Immersion Tin
11.E-test:100%
12.Inspection standard: IPC-A-600H/IPC-6012B, Class 2/3
13.Reports: Final inspection, E-test, Solderability test, Microsection，Thermal stress,Ionic Contaminate Test etc.
14.Certificates: UL, SGS, RoHS, ISO14001:2004, ISO/TS16949:2009
15.Application: Automotive
