Brand : Chanyee
Product origin : Jiaxing, China
Delivery time : 7-28days

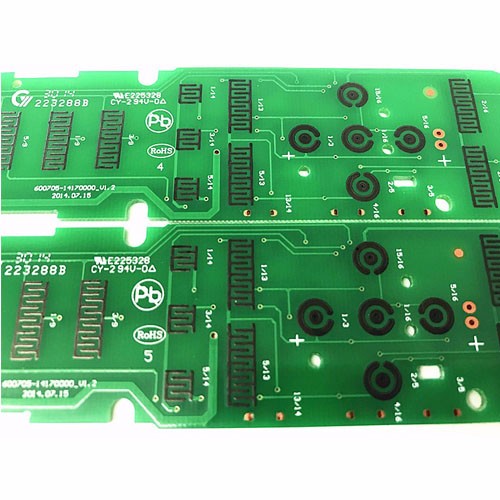

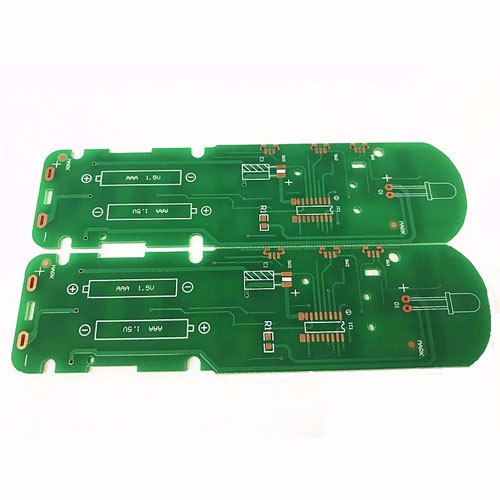

1.2 Layers OSP Circuit Board
2.Base Material: FR4, RoHS compliance
3.Panel Size(mm):168.5*125.53
4.Board Thickness(MM): 1.6
5.Copper Thickness(OZ): 1/H/H/1
6.Min. Hole Size: 0.45 mm
7.Min. Hole copper:18 um
8.Min. Line Width: 0.226 mm
9.Min. Line Spacing: 0.419 mm
10.Solder Mask: Green （White, Black, Blue, Yellow,Red, Matte Green, Matte Blue can be chosen）
11.Silkscreen: White （Black, Yellow can be chosen）
12.Outline: CNC+V
13.Surface Finishing: OSP
14.E-test:100%
15.Inspection standard: IPC-A-600H/IPC-6012B, Class 2/3
16.Reports: Final inspection, E-test, Solderability test, Microsection，Thermal stress,Ionic Contaminate Test etc.
17.Certificates: UL, SGS, RoHS, ISO14001:2004, ISO/TS16949:2009
19.Application: Remote control
18.High light: Carbon ink
