Brand : Chanyee
Product origin : Jiaxing, China
Delivery time : 7-28days

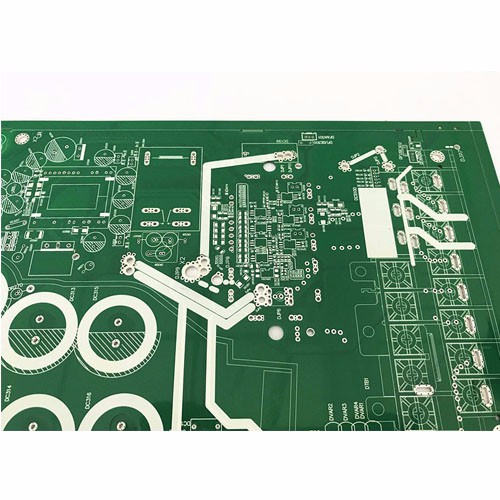

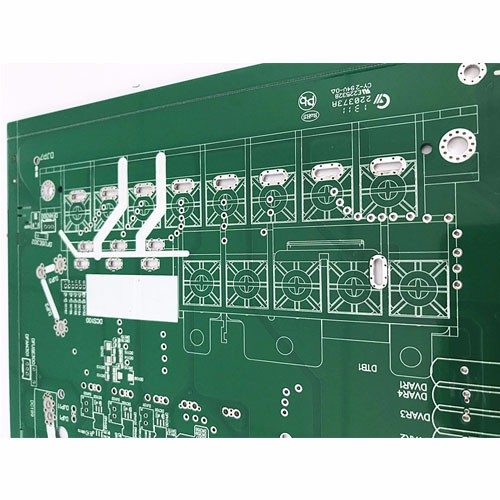

1.2 Layers HASL Circuit Board
2.Base Material: FR4
3.Panel Size(mm):296.2*196
4.Board Thickness(MM): 1.6
5.Copper Thickness(OZ): 2.5/2.5
6.Min. Hole Size: 0.55 mm
7.Solder Mask: Green（Yellow, Black, Blue, White ,Red, Matte Green, Matte Blue can be chosen）
8.Silkscreen: White（Black, Yellow can be chosen）
9.Outline: CNC+V
10.Surface Finishing: LF HASL
11.E-test:100%
12.Inspection standard: IPC-A-600H/IPC-6012B, Class 2/3
13.Reports: Final inspection, E-test, Solderability test, Microsection，Thermal stress,Ionic Contaminate Test etc.
14.Certificates: UL, SGS, RoHS, ISO14001:2004, ISO/TS16949:2009
15.Application: Industrial Control
16.Highlight: Plug hole
