Brand : Chanyee
Product origin : Jiaxing, China
Delivery time : 7-28days

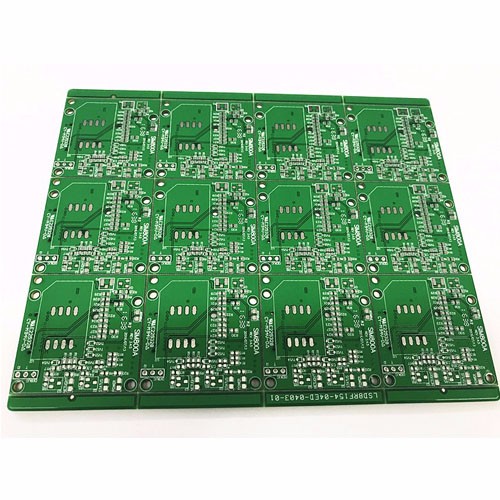

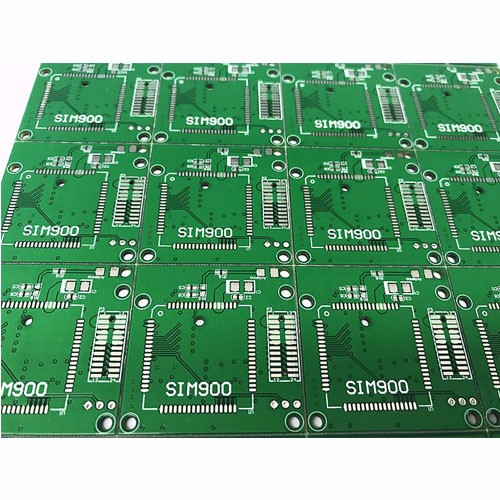

1.4 Layers LoT PCB
2.Base Material: FR4, RoHS compliance
3.Panel Size(mm):162.56*131.92
4.Board Thickness(MM): 1.6
5.Copper Thickness(OZ): 1/1/1/1
6.Min. Hole Size: 0.30 mm
7.Min. Hole copper: 18 um
8.Min. Line Width: 0.254 mm
9.Solder Mask: Green （White, Black, Blue, Yellow,Red, Matte Green, Matte Blue can be chosen）
10.Silkscreen: White （Black, Yellow can be chosen）
11.Outline: CNC+V
12.Surface Finishing: LF HASL
13.E-test:100%
14.Inspection standard: IPC-A-600H/IPC-6012B, Class 2/3
15.Reports: Final inspection, E-test, Solderability test, Microsection，Thermal stress,Ionic Contaminate Test etc.
16.Certificates: UL, SGS, RoHS, ISO14001:2004, ISO/TS16949:2009
17.Application: IoT
