Brand : Chanyee
Product origin : Jiaxing, China
Delivery time : 7-28days

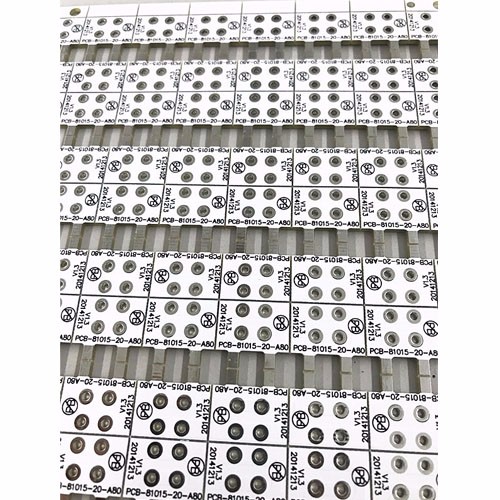

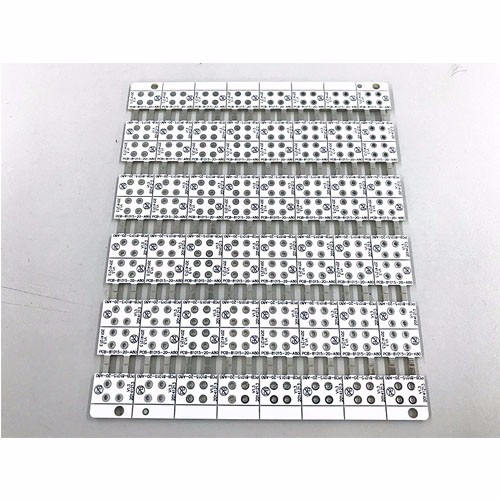

1.2 Layers Rigid Circuit Board
2.Base Material: FR4, RoHS compliance
3.Panel Size(mm):155.78*128
4.Board Thickness(MM): 1.6
5.Copper Thickness(OZ): 1/1
6.Min. Hole Size: 0.8 mm
7.Min. Hole copper: 25.4 um
8.Solder Mask: White （Green, Black, Blue, Yellow,Red, Matte Green, Matte Blue can be chosen）
9.Silkscreen: Black （White, Yellow can be chosen）
10.Outline: CNC+V
11.Surface Finishing: LF HASL
12.E-test:100%
13.Inspection standard: IPC-A-600H/IPC-6012B, Class 2/3
14.Reports: Final inspection, E-test, Solderability test, Microsection，Thermal stress,Ionic Contaminate Test etc.
15.Certificates: UL, SGS, RoHS, ISO14001:2004, ISO/TS16949:2009
16.Application: Automotive
