Brand : Chanyee
Product origin : Jiaxing, China
Delivery time : 7-28days

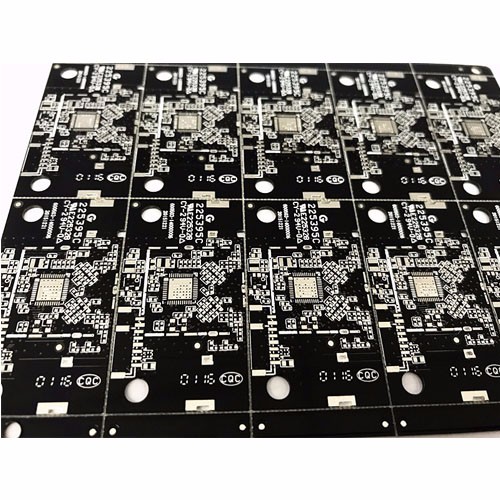

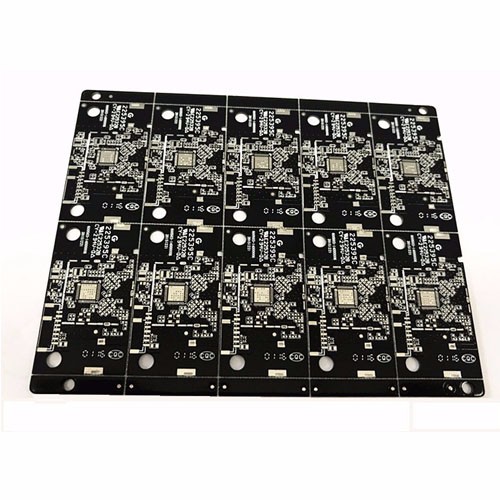

1.2 Layers home appliance PCB
2.Base Material: FR4, RoHS compliance
3.Panel Size(mm):124.97*100.02
4.Board Thickness(MM): 1.0
5.Copper Thickness(OZ): 1/1
6.Min. Hole Size: 0.25 mm
7.Min. Hole copper: 18 um
8.Min. Line Width: 0.127 mm
9.Min. Line Spacing: 0.077 mm
10.Solder Mask: Black（White,Green,Blue,Yellow,Red,Matte Green,Matte Blue can be chosen）
11.Silkscreen: White （Black,Yellow can be chosen）
12.Outline: CNC+V
13.Surface Finishing: LF HASL
14.E-test:100%
15.Inspection standard: IPC-A-600H/IPC-6012B, Class 2/3
16.Reports: Final inspection, E-test, Solderability test, Microsection，Thermal stress,Ionic Contaminate Test etc.
17.Certificates: UL, SGS, RoHS, ISO14001:2004, ISO/TS16949:2009
18.Application: Remote Control
